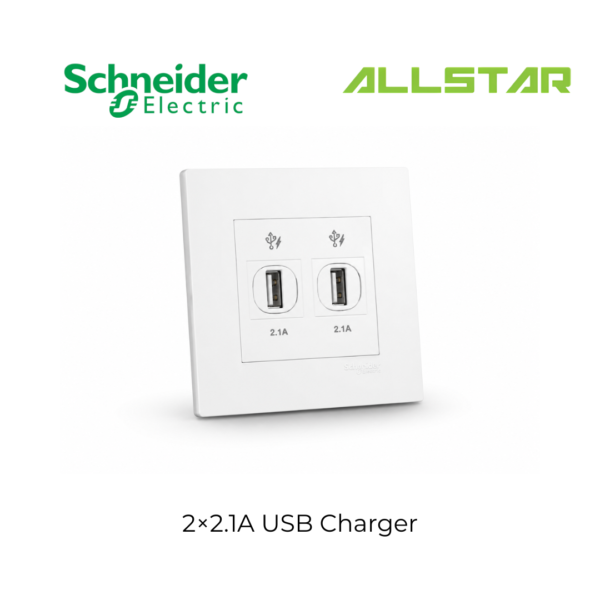

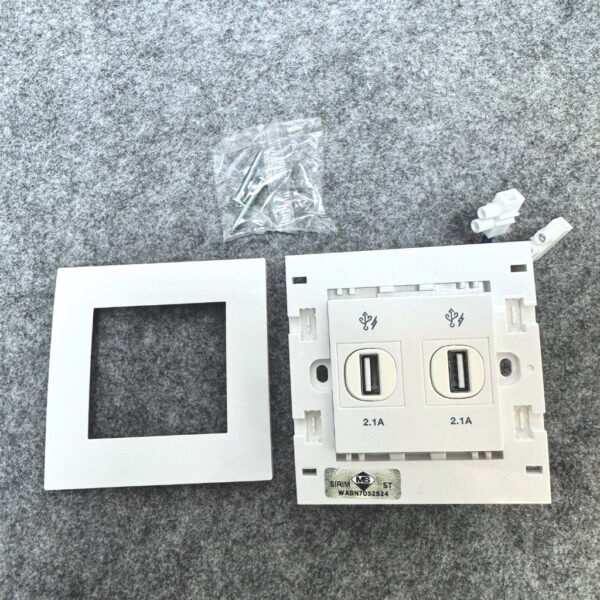

Schneider Vivace Switch USB Socket 2×2.1A USB Socket White SIRIM Fast Charging

KB32USB

2 x 2.1A USB Socket

Input Voltage: 100- -240V~

Input Frequency: 50/60 Hz

Input Current: 0.45A

Output Voltage: 5V DC

Output Current: 2.1A max

Panel Dimension: 87mmx87mm

Mounting Centre: 60.3mm

Compliance: IEC 60950-1 GB 4943.1

Over Heat Protection:

PWM IC thermal shut down: Min.

135 °C; Typical 142 °C; Max. 150 °C

Over Current Protection (OCP) *2:

2.1A < Total Load current < 2.5 A

Over Voltage Protection (OVP) *2:

5.8 V < Output voltage < 9 V



*1: All data apply to each port separately, only.

*2: USB socket may be turned off automatic by OCP/OVP function to stop some disruptive overload. And will automatic restart after (Input) power cut-off
